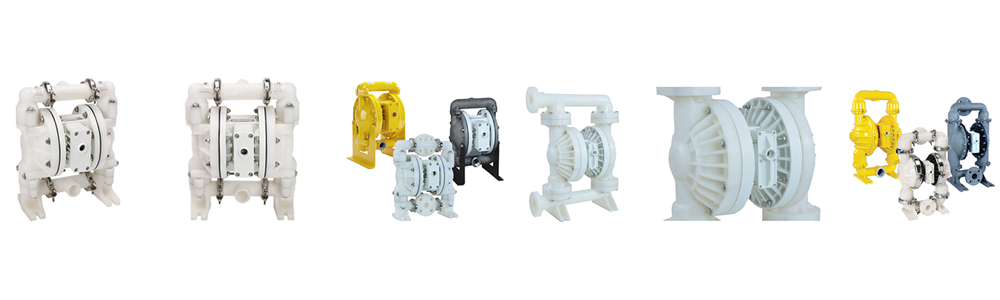

Air Operated Double Diaphragm Pumps

Design Features

Air operated diaphragm pumps are reciprocating pumps where the working elements are flexible diaphragms. The drive is by means of compressed air acting directly upon the diaphragm. Another possibility is hydraulically drive instead of compressed air. At least two valves, one on the discharge and one on the suction side, are necessary. Several types of valves are used. The most popular valves are flap, cylindrical and ball valves.

Air-operated double diaphragm pump is a self-promised pump to work hard against huge number of Liquids and atmosphere donate driver seat to user.

It can move anything from fine chemicals (gentle, non-shearing action), to abrasive and viscous slurries (no close-fitting parts, low internal velocities), and almost any other product.

Material of Construction

PVDF | Polypropylene| PPH | Stainless Steel | Alloy 20 | Hastalloy | CD4MCu | SUPER DUPLEX GRADES | Aluminum | Low Temperature Carbon Steel- LTCS

Pump Performance Parameters and Sizes

	AODD - 150	AODD - 300	AODD - 400	AODD - 500	AODD - 800
Flow Rate	0 to 35 LIT/M	0 to 117 LIT/M	0 to 275 LIT/M	0 to 700 LIT/M	0 to 1100 LIT/M
Suction	19 mm (1/2" BSP)	25 mm (1" BSP)	40 mm (1.5" BSP)	50 mm (2" BSP)	80 mm (3" BSP)
Delivery	19 mm (1/2" BSP)	25 mm (1" BSP)	40 mm (1.5" BSP)	50 mm (2" BSP)	80 mm (3" BSP)
Air Inlet	6.35 mm (1/4" BSP)	9.53 mm (3/8" BSP)	9.53 mm (3/8" BSP)	12.7 mm (1/2" BSP)	12.7 mm (1/2" BSP)
Air Exhaust	12.7 mm (1/2" BSP)	12.7 mm (1/2" BSP)	12.7 mm (1/2" BSP)	19 mm (3/4" BSP)	19 mm (3/4" BSP)
Suction Lift	Rubber 1.45 Mtrs (Dry) 2.83 Mtrs (Wet) Teflon 0.5 Mtrs (Dry) 0.9 Mtrs (Wet)	Rubber 3 Mtrs (Dry) 5 Mtrs (Wet) Teflon 2 Mtrs (Dry) 4 Mtrs (Wet)	Rubber 4.6 Mtrs (Dry) 7.6 Mtrs (Wet) Teflon 3 Mtrs (Dry) 6 Mtrs (Wet)	Rubber 4.6 Mtrs (Dry) 7.6 Mtrs (Wet) Teflon 3 Mtrs (Dry) 6 Mtrs (Wet)	Rubber 6 Mtrs (Dry) 7.6 Mtrs (Wet) Teflon 3 Mtrs (Dry) 6 Mtrs (Wet)
Max Particle Size	2 mm	3.17 mm	5 mm	6.3 mm	19 mm

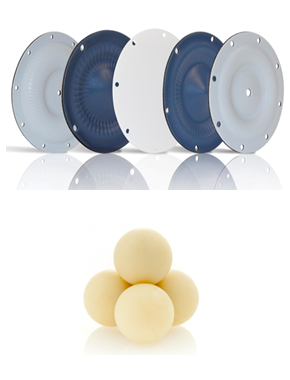

Spare Parts

Applications
