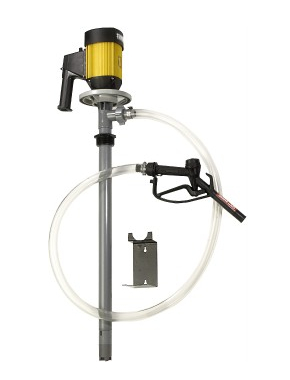

Barrel Unloading Pumps - Low Viscous Liquids

Barrel Unloading Pumps - Low Viscous Liquids

Design Features

It is self priming device which used to extract the liquid bottom of the barrel through hollow pipe by providing centrifugal action, shaft rotates connected by impeller either electric or pneumatic prime mover.

Pumps are available with following material constructions:

MILD STEEL / SS – 316 / SS 304

  • All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut, impeller are made of SS316 investment castings or polypropylene.
  • The outer & inner pipes are seamless type made of SS-316.
  • The shaft is made of SS-316 bright bar.
  • The guide sleeve and lip seals are made of Teflon.

Applications

For almost all types of Solvents, Varnishes, Turpentine, Paints, Gasoline, HSD, Petroleum products, Chloroform, Drugs & pharmaceuticals, Degreasing agent, Phenol, IPA, LDO, Water treatment chemicals, Nitric acid, Phosphoric acid, Thermic fluid.

Polypropylene with imported Hastalloy- B2/ C Shaft

  • All wetted parts, outer & Inner pipes are made of Polypropylene.
  • The shaft is made of imported Hastalloy-B-2. (Containing 29% Molybdenum).
  • The impeller is made of ETFE (Moulding grade of Teflon).

Applications

For highly corrosive liquids like conc., HCI, Dil H2SO4, HF, NaOH, formic acid, electroplating solution, photographic developers, salt solution, pesticides intermediates, toxic chemicals.

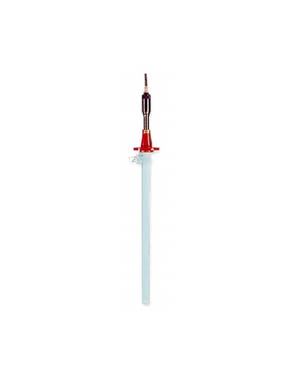

PTFE (Teflon) with Hastalloy - B2 or SS-316 Shaft

  • All wetted parts are fabricated from PTFE.
  • Outer & Inner pipes & Guide sleeve are made of pure Teflon.
  • The shaft is made of SS-316 or Hastalloy-B2.
  • The impeller is made of ETFE
  • Suitable for all the said liquids

Available With

  • Non Flameproof
  • Flameproof
  • Pneumatic (Air) Motors

Selection chart

MODEL MOTOR HP MATERIAL FLOW RATE MAX HEAD VISCOSITY RANGE IN CPS
ELECTRICAL
BPSSE/1.0 1.0 SS 60 12 UP TO 300 CPS
BPPPE/1.0 1.0 PP 60 12 UP TO 300 CPS
BPPTFEE/1.0 1.0 PTFE 60 12 UP TO 300 CPS
AIR DRIVEN
BPSSA/1.0 0.6 /18 CFM@ 3 - 6 BAR SS 80 12 UP TO 300 CPS
Hand Operated Barrel Pumps

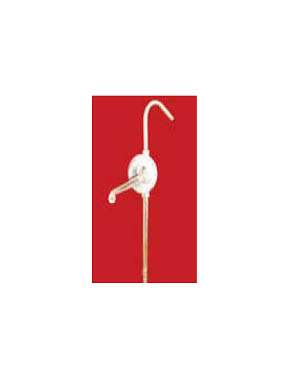

SS-316 / SS-304 Hand Operated Barrel Pumps

  • Rotary hand operated Drum Pumps.
  • All internal parts, vanes and seals are made of Teflon.
  • 1" inlet and outlet tube with dual thread for steel and plastic drums.
  • Self-priming and self draining quickly.
  • Suitable for chemicals and solvents and aroma oils.
  • Standard Length – 990MM
  • Output - 200ML per rotation. Max head : 10 Feet.
  • Viscosity : Max 800 CPS

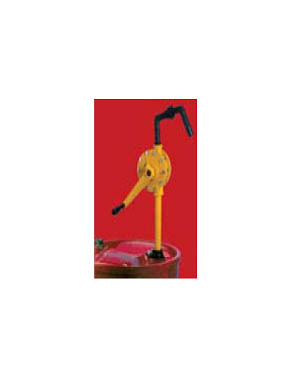

Polypropylene Hand Operated Barrel Pumps

  • Rotary hand operated, Light weight Drum Pumps.
  • All internal parts are made of Carbon/Teflon.
  • 1" inlet and outlet tube with dual thread for steel and plastic drums.
  • Self-priming and self draining quickly.
  • Suitable for chemicals and solvents and highly corrosive acids.
  • Standard Length – 990MM
  • Output - 200ML per rotation. Max head : 10 Feet.
  • Viscosity : Max 700 CPS

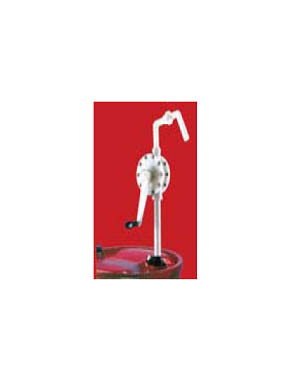

PVDF Hand Operated Barrel Pumps

  • Rotary hand operated, Light weight Drum Pumps.
  • All internal parts are made of Carbon/Teflon.
  • 1" inlet and outlet tube with dual thread for steel and plastic drums.
  • Self-priming and self draining quickly.
  • Suitable for chemicals and solvents and highly corrosive acids.
  • Standard Length – 990MM
  • Output - 200ML per rotation. Max head : 10 Feet.
  • Viscosity : Max 700 CPS

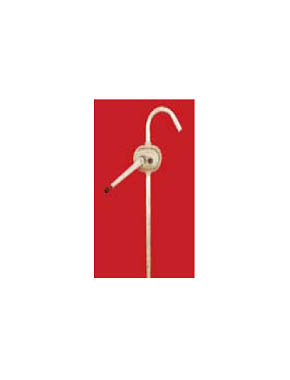

High Volume Hand Operated Barrel Pumps

  • Cast Aluminium Body, Rotary Type, Geared Hand Operated Pump
  • Positive Displacement by Oval Gear Design.
  • 1" inlet and outlet tube in GI with 2" cast aluminium bung adapter.
  • Output - 1 Liter per Revolution. Max head : 10 Meters.
  • Self-priming. Forward and Reverse Flow, no flow if not pumped.
  • Most Suitable for lubricating, brake,machine and hydraulic oil,petrol, diesel and furnace oil from barrels. Drum can be drained completely.
  • Viscosity : Max 2000 CPS

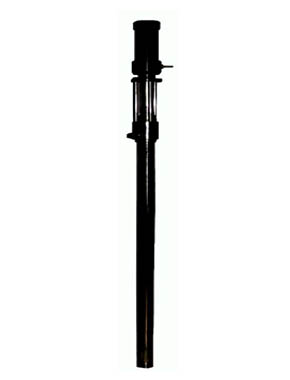

Air Operated Pneumatic Piston Type Barrel Pumps for Medium Viscous Liquids

Piston pump is a 1:1 heavy duty ratio transfer pump designed for transfering a wide range of chemicals, cosmetics, polyol, adhesive, diesel, oil, and any other flowable liquids up to 30 meters.

Features :

  • Perfect to Low to Medium Viscous Liquids.
  • Available for MS / Plastic Drums. Also available wall mounting model.
  • Operated at very low air pressure. Starting air pressure is 1.2 Kg/cm2
  • Optimum capacity at 4.5 Kg/cm2. Maximum Air Pressure - 6.0 Kg/cm2 .
  • Total stainless steel 316 construction with Teflon Seals / Packing.
  • Provided with acurate flow control valve. FRL unit can also be supplied.
  • Supplied qith bung adopter suitable for MS / Plastic Drums
  • Standard two ball desgin provides smooth reliable flow.
  • Check valve design for Light Liquid Transfer.

Technical Specification :

Model A 40 SS52 APP A 40 SS44 APP A 40 SS25 APP
Contact Parts SS 316 / PTFE SS 316 / PTFE SS 316 / PTFE
Pump Tube Inlet 52 MM 44 MM 25 MM
Pump Outlet 3/4" Serrated Nozzle 3/4" Serrated Nozzle 3/4" Serrated Nozzle
Air Requirement 12 CFM 12 CFM 12 CFM
Air Pressure 1.2 - 6 Kg/cm2 1.2 - 6 Kg/cm2 1.2 - 6 Kg/cm2
Air Motor Diameter 2" 2" 2"
Air Inlet Size 1/4" 1/4" 1/4"
Flow Rate at Open Max 45 LPM Max 40 LPM Max 30 LPM
Weight of Pump 12 Kgs 10 Kgs 7 Kgs

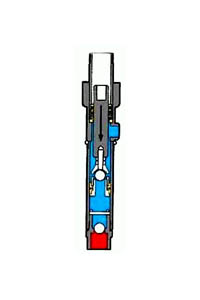

Working Principle :

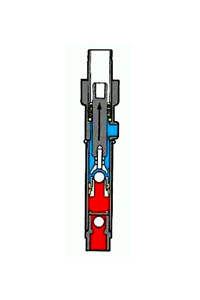

Pump Up Stroke

The lower ball valve rises and pulls fluids into the pump. Fluidds exits the pump when the upper valve rises with the plunger.

Pump Up Stroke

The lower ball valve rises and pulls fluids into the pump. Fluidds exits the pump when the upper valve rises with the plunger.

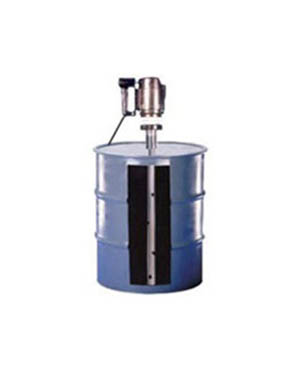

Drum Mixing Pumps

RHODEK Mixing Pumps are identical in construction except they are supplied with a mixing tube instead of discharge tube. This is ideal for use wherever dispersions or suspensions are used particularly where it is convenient to mix and homogenize such liquids in the course of transferring from Barrel / container to other vessels.

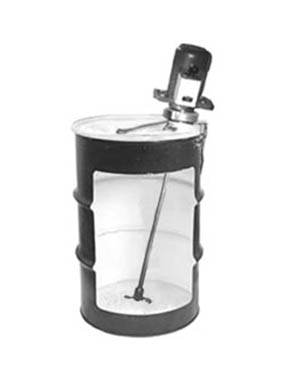

IDM Drum Stirrers

Our IDM Drum Stirrers, a light, portable and continuous duty rated allows quick blending without removing the drum lid. The Drum Stirrer Assembly incorporates a threaded stainless steel nipple to allow mounting on the opening of drums.
