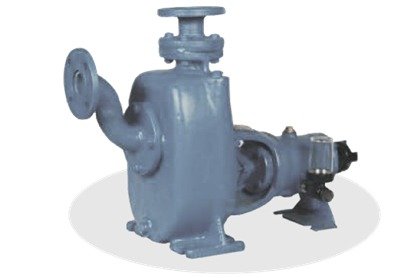

Self Priming Pumps

Design Features:

• High head low capacity pump.
• Available in S.S.-316 INVESTMENT CASTING and Cast Iron with all wetted parts of S.S.-316.

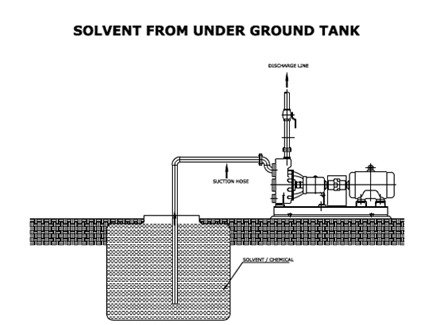

• Excellent for handling solvents from barrels and from tank farms to the charging vessels.
• Seal leakage can easily be detected from window in priming chamber.
• Pump can take negative lift from 3 to 5 meters.
• Maintenance is easier, drain arrangement is standard.
• Compact design - requires less space, no grouting required

Range Of Product:

• Capacity up to - 12 m³/hr
• Head up to - 35 m.
• Power up to - 5.5 KW

Range Of Product:

• Low NSPH required
• Life lubricating bearings covered from both the ends so minor leakage from pump side does not affect bearings.
• Being a low speed (1450 RPM) pump, Less Maintenance is needed.
• Installation is easier since motor required is vertical flange type and is directly coupled to the pump, coupling alignment is simpler.
• Low overhang shaft arrangement giving minimum deflection at the seal faces.
• Floating type impeller reduces noise and vibration.
• Available only with mechanical seal (internal mounted), rotary faces of Carbon and Glass Filled Teflon (GFT) are optional.
• Seal cooled and flushed by process fluid itself.
• Minor leakage at suction side does not affect pump performance.
• Capacity

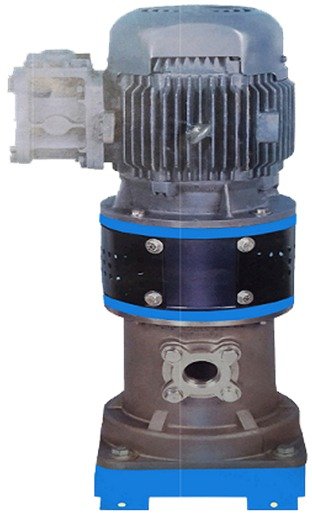

• Biggest advantage from installation point of view is that since it is an "in line" type pump, it can be fitted as a valve and hence it will not require any suction or delivery piping effort

Technical Specifications

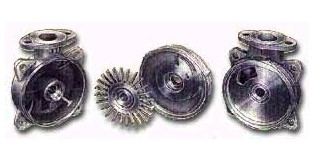

All parts made in investment casting to give superior hydraulic performance

Advantages

• Centripetal self-priming pumps with turbine type impellers.
• Excellent for solvents tank farms.
